Diesel Lift Pump 150GPH Raptor RP-4G-150 1998.5-2002 Dodge Cummins with In-Tank Fuel Pump - AirDog - R4SBD360

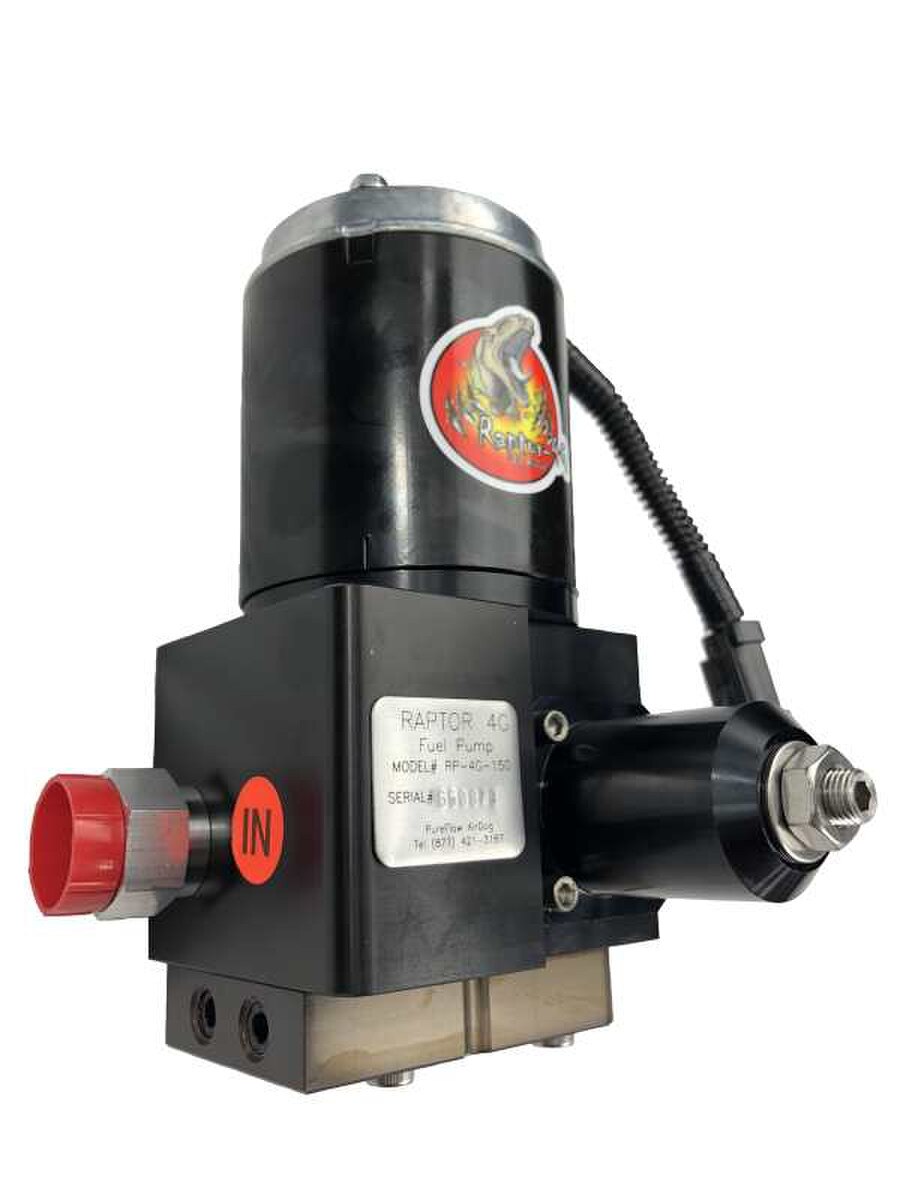

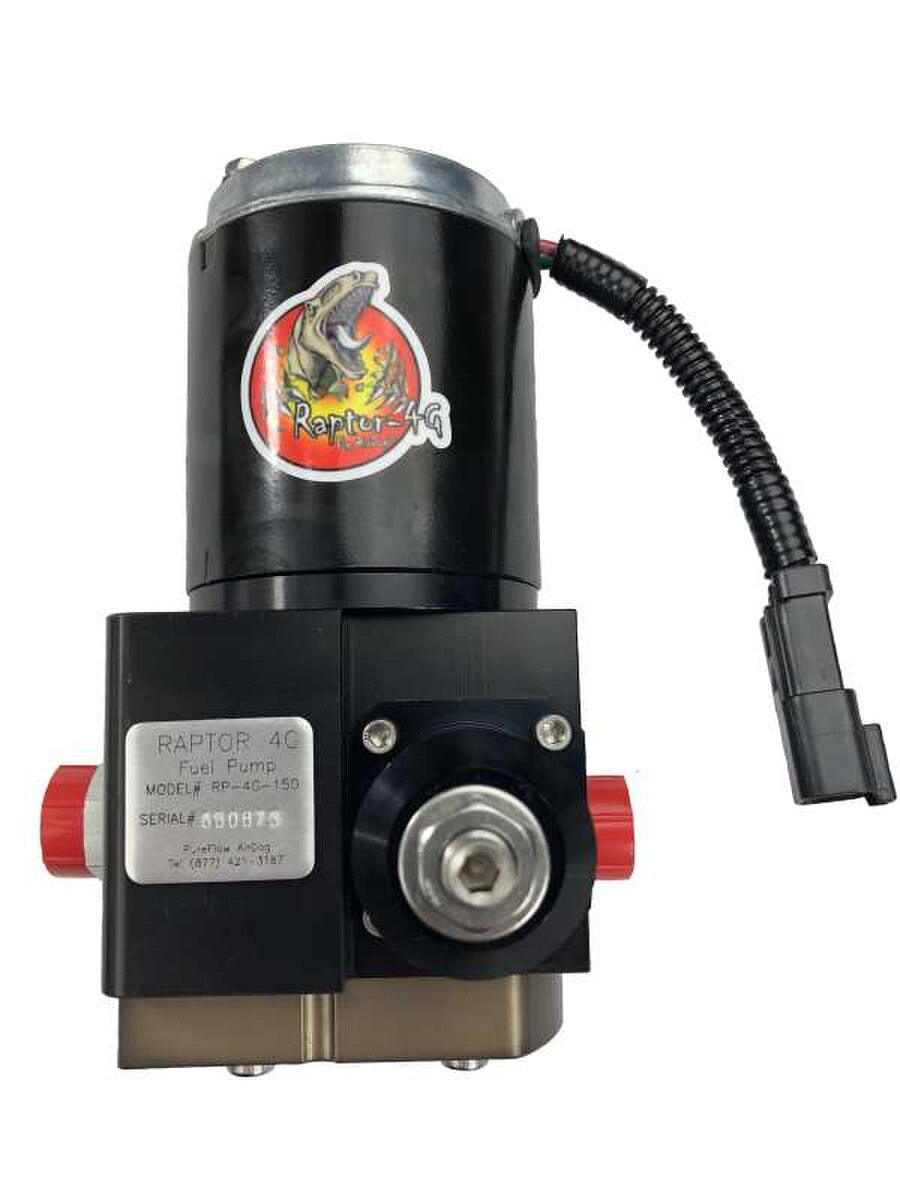

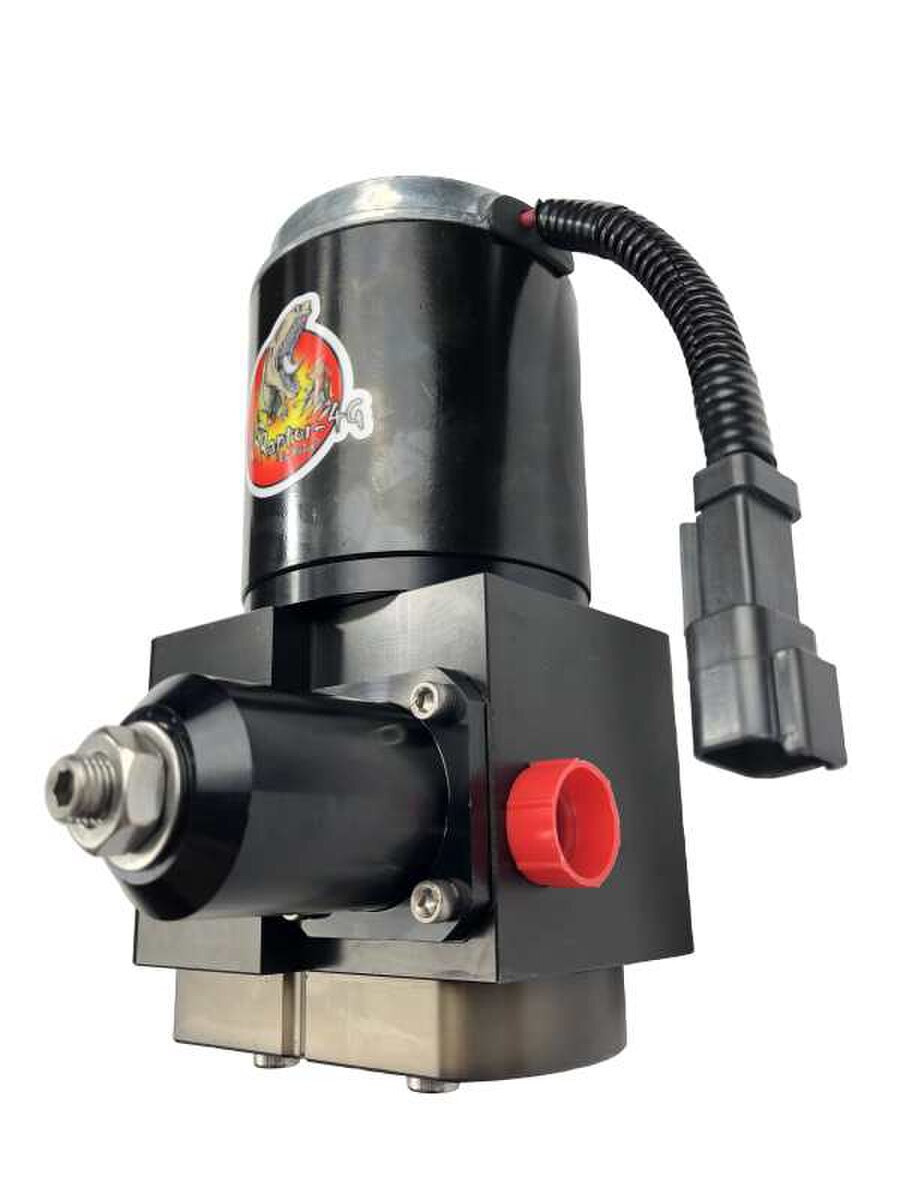

This is the Raptor-4G RP-150 fuel system for the 1998.5-2002 VP-44 24V Cummins with the fuel pump in the fuel tank. This system mounts to the frame rail using the supplied sandwich plate mounting system.

A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2 Inch bulkhead fitting. This will bypass the factory in-tank lift pump.

The pressure side connects directly into the side of the fuel filter housing on the engine block. These pumps are internally regulated and do not require a return line.

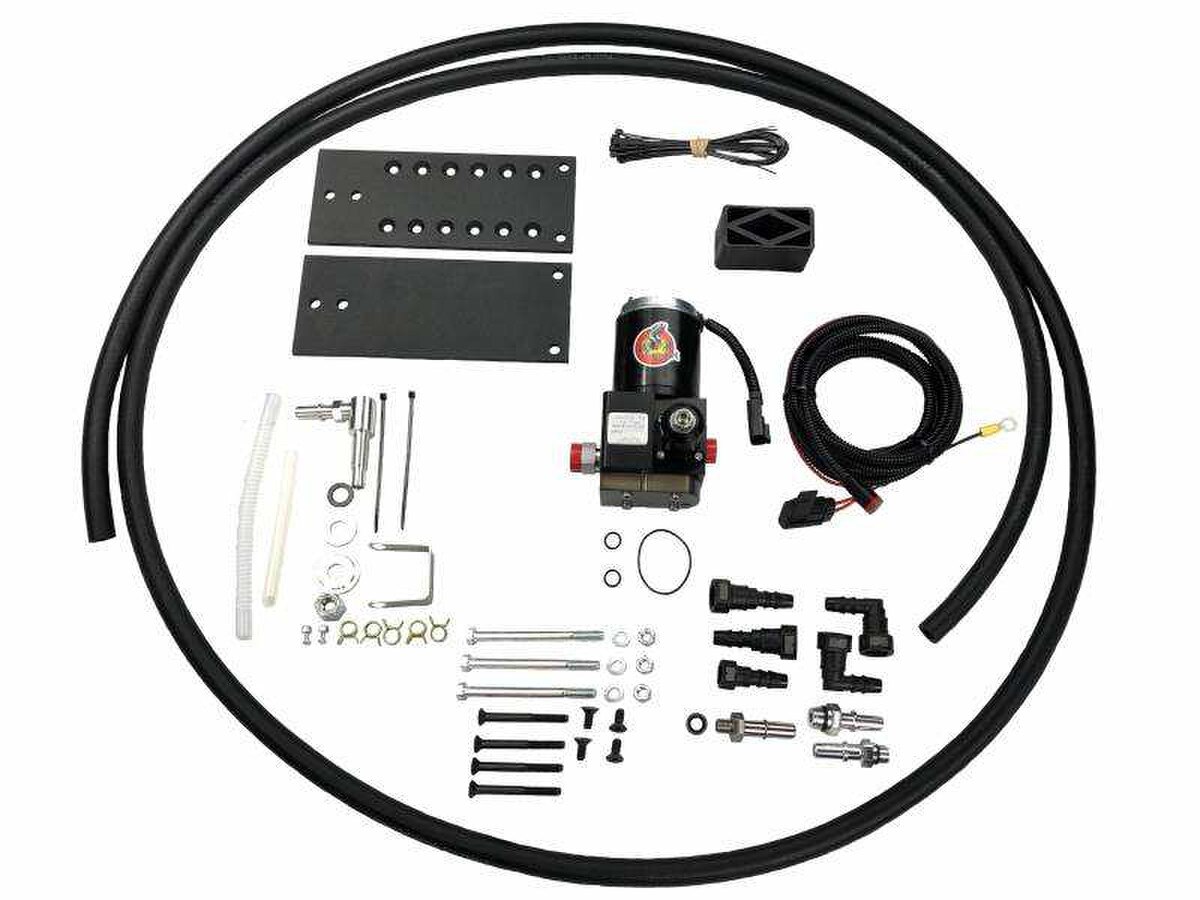

This is a 150GPH (Gallon Per Hour) fuel system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

Details:

• Gallons per hour: 150GPH
• Manufacturer: Cummins
• Make: Dodge
• Liter: 5.9L
• Valve: 24V
• Engine Years: 1998.5-2004
• Fuel Type: Diesel

• 1998 Dodge Ram 2500 5.9L DIESEL
• 1998 Dodge Ram 3500 5.9L DIESEL
• 1999 Dodge Ram 2500 5.9L DIESEL
• 1999 Dodge Ram 3500 5.9L DIESEL
• 2000 Dodge Ram 2500 5.9L DIESEL
• 2000 Dodge Ram 3500 5.9L DIESEL
• 2001 Dodge Ram 2500 5.9L DIESEL
• 2001 Dodge Ram 3500 5.9L DIESEL
• 2002 Dodge Ram 2500 5.9L DIESEL
• 2002 Dodge Ram 3500 5.9L DIESEL
• 2003 Dodge Ram 2500 5.9L DIESEL
• 2003 Dodge Ram 3500 5.9L DIESEL
• 2004 Dodge Ram 2500 5.9L DIESEL
• 2004 Dodge Ram 3500 5.9L DIESEL
