Ram (4WD) Drive Axle Assembly - Front - Zumbrota Drivetrain - RAA440-10404A
Details
Front Axle Assembly
RAA440-10404A
Ratio: 3.21; Chrysler C215F, 8.46 Inch Ring Gear, IFS, Flat Style Axle Snap Ring
,13,13,15,1500,1500,18,215MM,3.21,3.21,440-10404A,8.0IFS,ASSY,ASSY,AXLE,AXLE,CHY,CHY,DIFFS,FRONT,IFS,RAA,RAA,RAM,RAM,ZF,

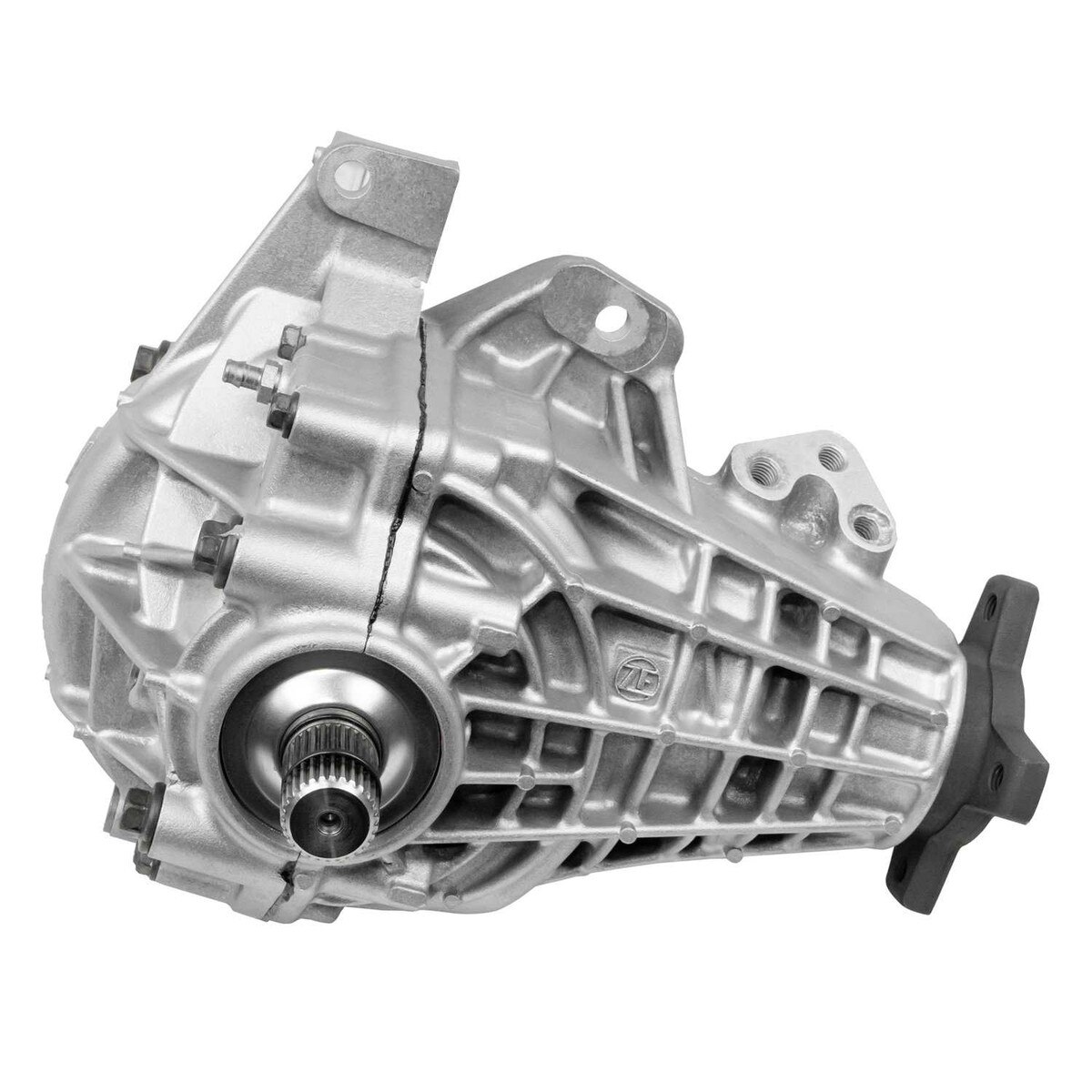

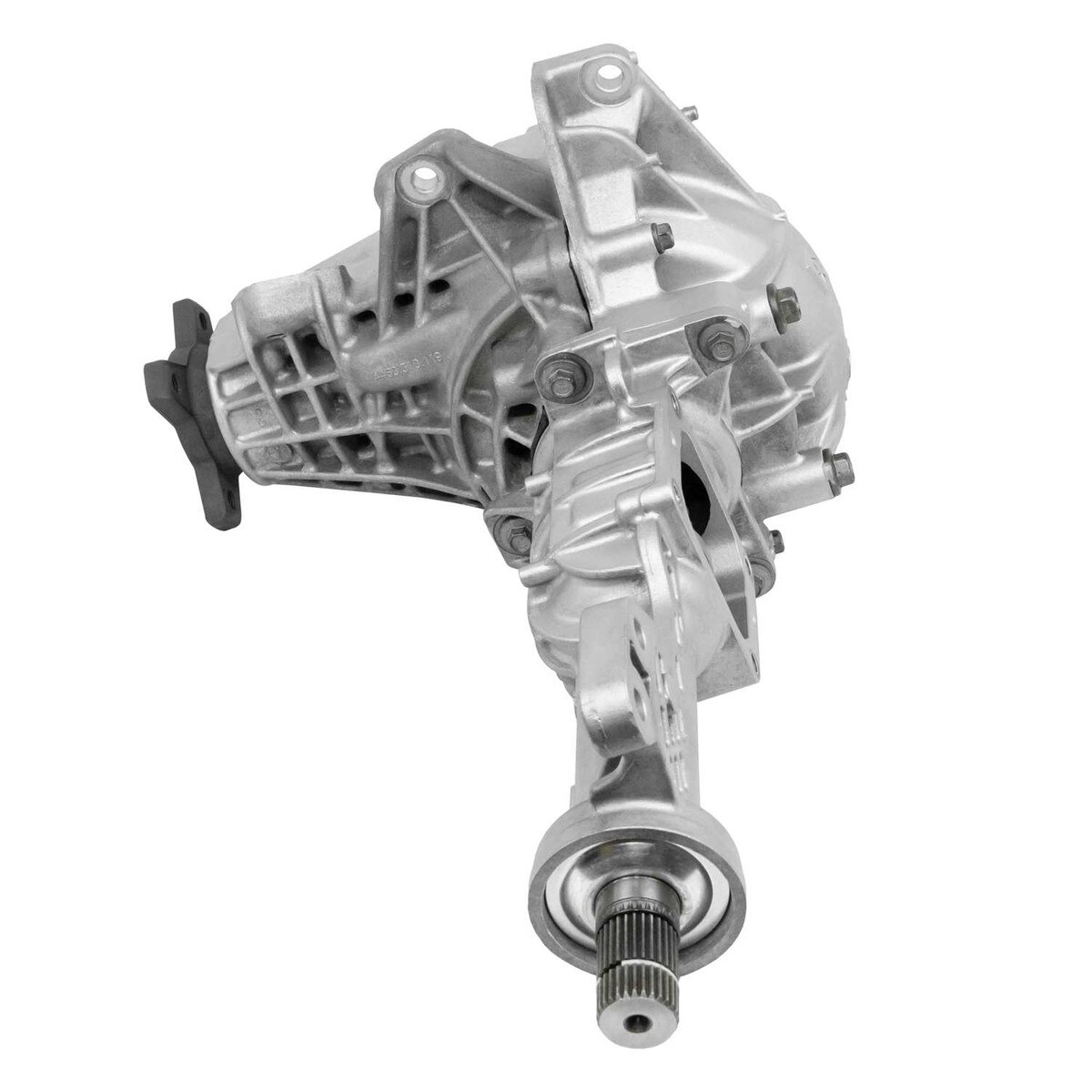

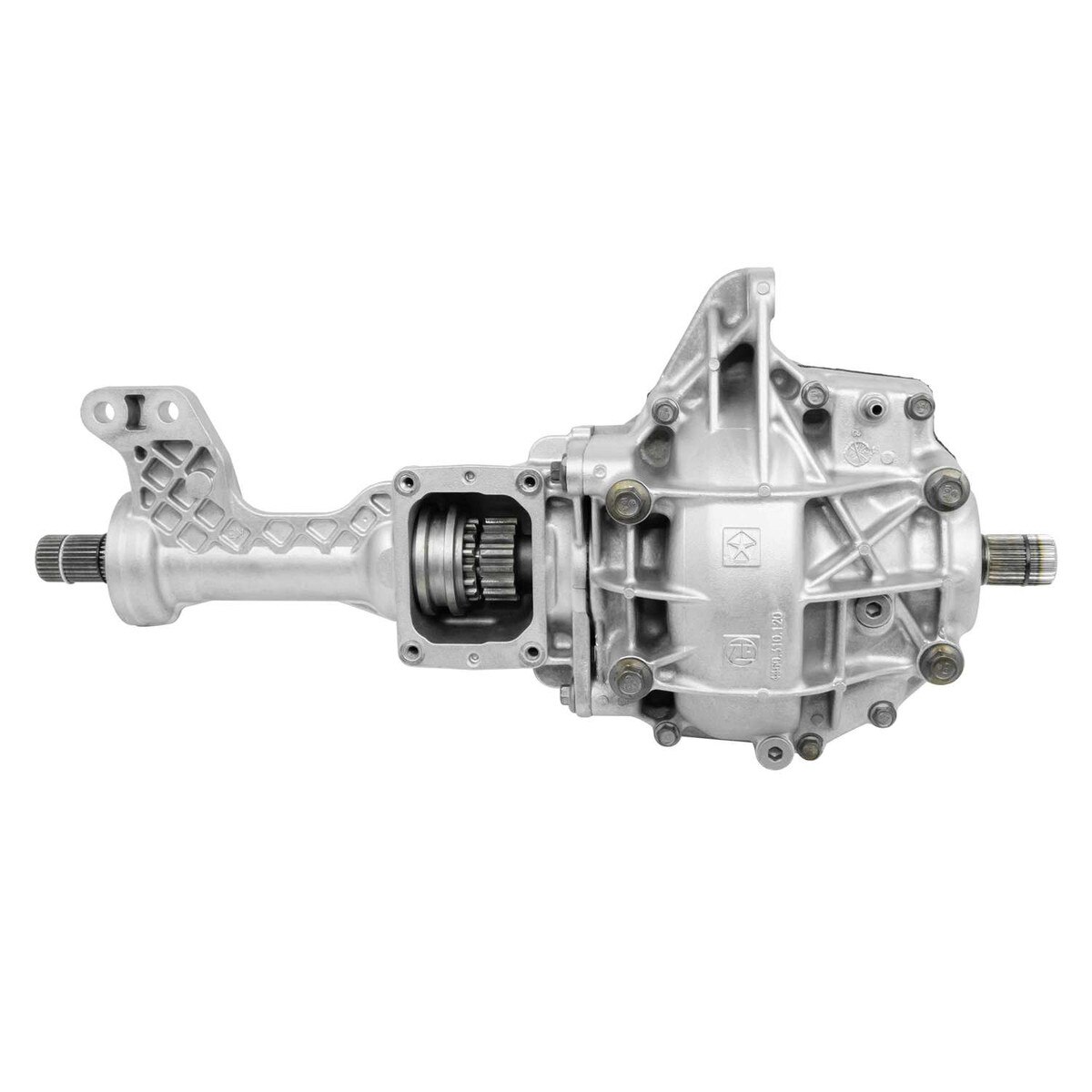

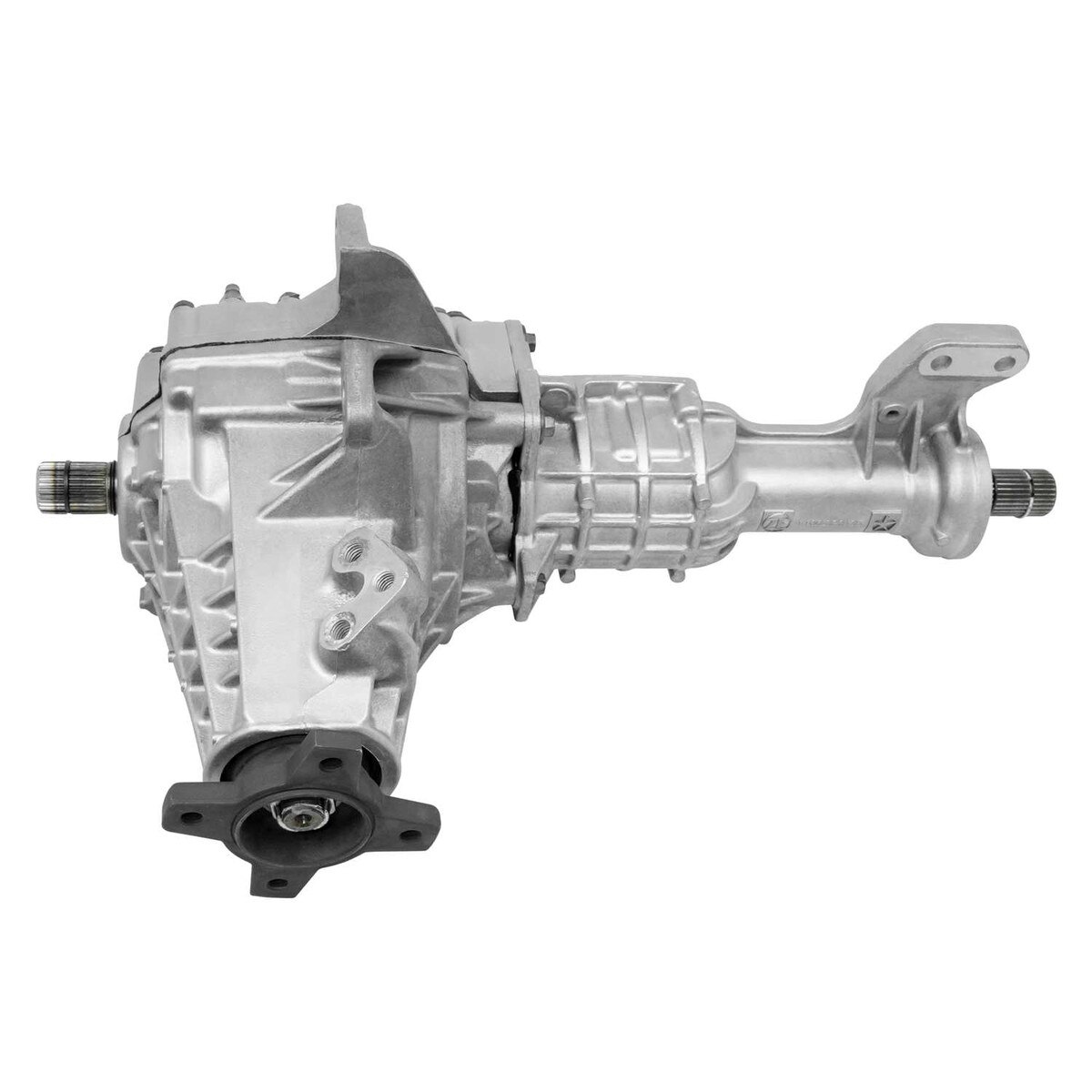

Reman Front Axle Assy, C215F, 8.46" Ring Gear, 2021-24 Ram 1500, 3.21 Ratio
ZF 215MM IFS Front Axle Assy '21-'24 CHY Ram 1500, New Body Style And 2021-24 Old Body Style Built Between 3/13/2021 And 11/21/2021 and after 12/29/2021, 3.21
ZF 215mm IFS Axle Assembly 2021-24 Ram 1500 3.21 Ratio
Zumbrota Drivetrain Axle Assemblies are rebuilt to the highest quality standards of precision and reliability. Each Axle assembly is thoroughly inspected for straightness, cracks and surface wear. All internal components are fully inspected and tested including ring and pinions, internal gears, clutches and carriers. All bearings and seals are replaced. Gears are fully inspected for optimal tooth contact patterns and correct rolling torque using inch pound measurements for precise setup and longevity. Correct gear backlash is set to ensure proper gear lubrication and quiet operation. Axle tubes are inspected to ensure OEM standards of straightness. Zumbrota uses an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning, setting the standard for Axle assembly remanufacturing.
Units are shipped in high density plastic totes to help eliminate in-transit damage
All housings are tested for surface wear and cracks.
100% inspection of all internal parts, including Ring and Pinion’s, Internal Gears, Clutch’s and Carrier’s
100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
Correct rolling torque established using inch pound measurement’s for precision setup and longevity
- Units are shipped in high density plastic totes to help eliminate in-transit damage
- All housings are tested for surface wear and cracks.
- 100% inspection of all internal parts, including Ring & Pinion’s, Internal Gears, Clutch’s & Carrier’s
- 100% replacement of bearings, seals, crush sleeves, pinion nuts and shims.
- All housings are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
- Correct rolling torque established using inch pound measurement’s for precision setup and longevity
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Cover Included: Yes
Fluid Capacity: 1.2
Fluid Included: No
Fluid Type: 75w-85 GL-5
Gear Ratio: 3.21
Grade Type: Regular
Pre-Filled Oil: No
Ring Gear Diameter: 215
Detailed Fitment Results
| Year | Make | Model | Drive Type | Fitment Notes |
|---|---|---|---|---|
| 2021 | Ram | 1500 | 4WD | Ratio: 3.21; Chrysler C215F, 8.46 Inch Ring Gear, IFS, Oval Style Axle Snap Ring, Left Axle Stub Measures 2-1 / 2 In. from the dust cover out, Right Axle Stub Measures 3 In. from the dust cover out, 03 / 13 / 2021 Thru 11 / 21 / 2021 and after 12 / 29 / 2021 |
| 2021 | Ram | 1500 Classic | 4WD | Ratio: 3.21; Chrysler C215F, 8.46 Inch Ring Gear, IFS, Oval Style Axle Snap Ring, Left Axle Stub Measures 2-1 / 2 In. from the dust cover out, Right Axle Stub Measures 3 In. from the dust cover out, 03 / 13 / 2021 Thru 11 / 21 / 2021 and after 12 / 29 / 2021 |
| 2022 | Ram | 1500 | 4WD | Ratio: 3.21; Chrysler C215F, 8.46 Inch Ring Gear, IFS, Oval Style Axle Snap Ring, Left Axle Stub Measures 2-1 / 2 In. from the dust cover out, Right Axle Stub Measures 3 In. from the dust cover out |
| 2022 | Ram | 1500 Classic | 4WD | Ratio: 3.21; Chrysler C215F, 8.46 Inch Ring Gear, IFS, Oval Style Axle Snap Ring, Left Axle Stub Measures 2-1 / 2 In. from the dust cover out, Right Axle Stub Measures 3 In. from the dust cover out |
| 2023 | Ram | 1500 | 4WD | Ratio: 3.21; Chrysler C215F, 8.46 Inch Ring Gear, IFS, Oval Style Axle Snap Ring, Left Axle Stub Measures 2-1 / 2 In. from the dust cover out, Right Axle Stub Measures 3 In. from the dust cover out |
| 2023 | Ram | 1500 Classic | 4WD | Ratio: 3.21; Chrysler C215F, 8.46 Inch Ring Gear, IFS, Oval Style Axle Snap Ring, Left Axle Stub Measures 2-1 / 2 In. from the dust cover out, Right Axle Stub Measures 3 In. from the dust cover out |
| 2024 | Ram | 1500 | 4WD | Ratio: 3.21; Chrysler C215F, 8.46 Inch Ring Gear, IFS, Oval Style Axle Snap Ring, Left Axle Stub Measures 2-1 / 2 In. from the dust cover out, Right Axle Stub Measures 3 In. from the dust cover out |
| 2024 | Ram | 1500 Classic | 4WD | Ratio: 3.21; Chrysler C215F, 8.46 Inch Ring Gear, IFS, Oval Style Axle Snap Ring, Left Axle Stub Measures 2-1 / 2 In. from the dust cover out, Right Axle Stub Measures 3 In. from the dust cover out |
Fitments
- 2021 Ram 1500 Classic 3.6L FLEX
- 2021 Ram 1500 Classic 5.7L GAS
- 2021 Ram 1500 3.0L DIESEL
- 2021 Ram 1500 3.6L ELECTRIC/GAS
- 2021 Ram 1500 3.6L MILD HYBRID EV-GAS (MHEV)
- 2021 Ram 1500 5.7L ELECTRIC/GAS
- 2021 Ram 1500 5.7L GAS
- 2021 Ram 1500 5.7L MILD HYBRID EV-GAS (MHEV)
- 2021 Ram 1500 6.2L GAS
- 2022 Ram 1500 Classic 3.6L FLEX
- 2022 Ram 1500 Classic 5.7L GAS
- 2022 Ram 1500 3.0L DIESEL
- 2022 Ram 1500 3.6L ELECTRIC/GAS
- 2022 Ram 1500 3.6L MILD HYBRID EV-GAS (MHEV)
- 2022 Ram 1500 5.7L ELECTRIC/GAS
- 2022 Ram 1500 5.7L GAS
- 2022 Ram 1500 5.7L MILD HYBRID EV-GAS (MHEV)
- 2022 Ram 1500 6.2L GAS
- 2023 Ram 1500 Classic 3.6L FLEX
- 2023 Ram 1500 Classic 5.7L GAS
- 2023 Ram 1500 3.0L DIESEL
- 2023 Ram 1500 3.6L MILD HYBRID EV-GAS (MHEV)
- 2023 Ram 1500 5.7L GAS
- 2023 Ram 1500 5.7L MILD HYBRID EV-GAS (MHEV)
- 2023 Ram 1500 6.2L GAS
- 2024 Ram 1500 Classic 3.6L FLEX
- 2024 Ram 1500 Classic 5.7L GAS
- 2024 Ram 1500 3.0L DIESEL
- 2024 Ram 1500 3.6L MILD HYBRID EV-GAS (MHEV)
- 2024 Ram 1500 5.7L GAS
- 2024 Ram 1500 5.7L MILD HYBRID EV-GAS (MHEV)
- 2024 Ram 1500 6.2L GAS
