Zone 2" Adventure Series Leveling Kit - Zone Offroad - ZOND49
Details

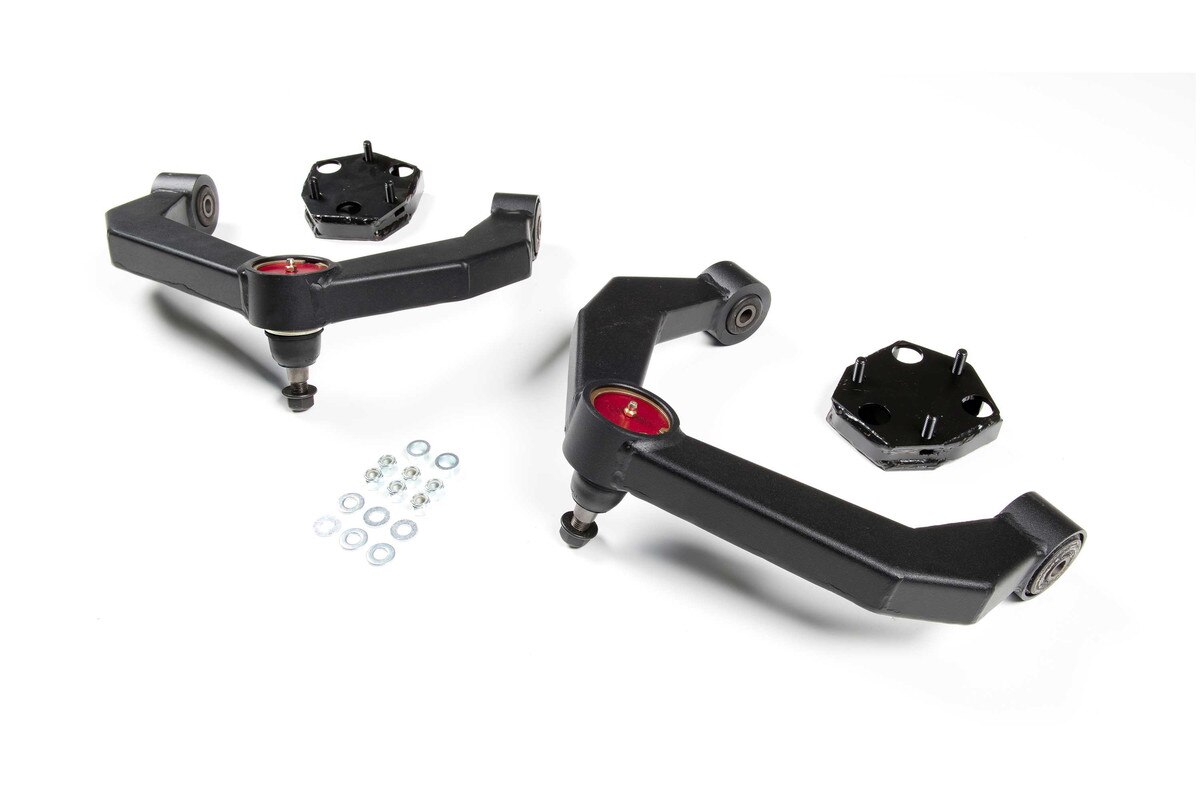

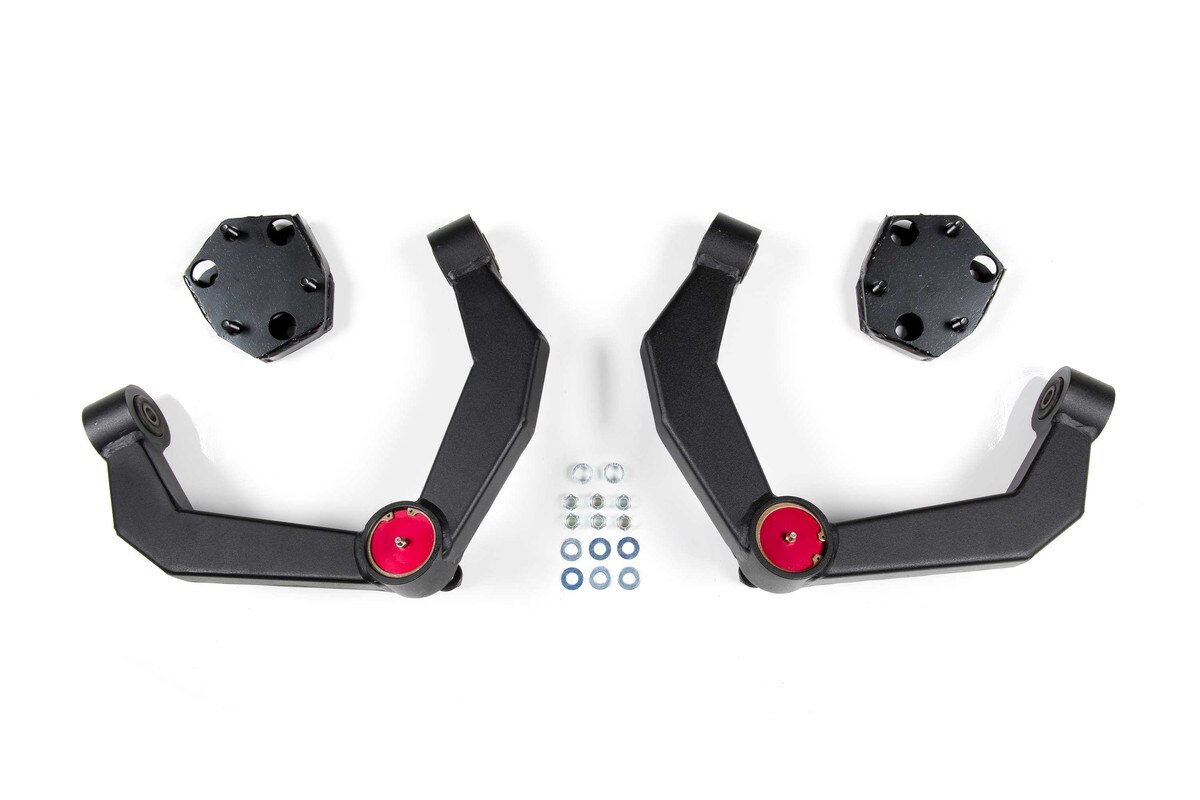

Level out your RAM 1500 the right way with Zone Offroad. In addition to these steel fabricated top mounted strut spacers designed for 2" of lift these kits address the limitations of the factory upper ball joint (maxed out with a leveling kit installed which will lead to premature wear) by upgrading to adventure series upper control arms (UCAs). These fully boxed and welded UCAs offer superior strength and performance and use an indexed ball joint cup designed for more droop travel. Parts come fully assembled and ready to install right out of the box to allow clearance for 33" tires.
- Upper strut spacer is pitched offset and rotated to ensure proper fitment and positioning with the factory strut
- Detailed easy to follow installation instructions included
- No strut compressor required for installation
- Limited Lifetime Warranty
- Powder-coated steel upper strut spacers for long-lasting durability
- Fully welded heavy-duty upper control arms that dwarf the factory arms
- CNC-machined UCA bushing and ball joint cups
- OE rubber bushings and greaseable factory style ball joints for quiet reliable and low maintenance operation
- Improved UCA range of motion compared to stock arms
- UCA ball joint position adjusted to keep arm in a neutral position with 2" of lift
- UCAs utilize replaceable ball joints - replacements are readily available from most auto parts stores when needed many miles down the road
- Avoids ball joint binding issue commonly known to occur on these models with spacer only type kits that use the factory UCAs
Detailed Fitment Results
| Year | Make | Model | Drive Type |
|---|---|---|---|
| 2012 | Ram | 1500 | 4WD |
| 2013 | Ram | 1500 | 4WD |
| 2014 | Ram | 1500 | 4WD |
| 2015 | Ram | 1500 | 4WD |
| 2016 | Ram | 1500 | 4WD |
| 2017 | Ram | 1500 | 4WD |
| 2018 | Ram | 1500 | 4WD |
| 2019 | Ram | 1500 Classic | 4WD |
| 2020 | Ram | 1500 Classic | 4WD |
| 2021 | Ram | 1500 Classic | 4WD |
Fitments
- 2012 Ram 1500 3.7L GAS
- 2012 Ram 1500 4.7L FLEX
- 2012 Ram 1500 5.7L GAS
- 2013 Ram 1500 3.6L FLEX
- 2013 Ram 1500 4.7L FLEX
- 2013 Ram 1500 5.7L GAS
- 2014 Ram 1500 3.0L DIESEL
- 2014 Ram 1500 3.6L FLEX
- 2014 Ram 1500 5.7L GAS
- 2015 Ram 1500 3.0L DIESEL
- 2015 Ram 1500 3.6L FLEX
- 2015 Ram 1500 5.7L GAS
- 2016 Ram 1500 3.0L DIESEL
- 2016 Ram 1500 3.6L FLEX
- 2016 Ram 1500 5.7L GAS
- 2017 Ram 1500 3.0L DIESEL
- 2017 Ram 1500 3.6L FLEX
- 2017 Ram 1500 5.7L GAS
- 2018 Ram 1500 3.0L DIESEL
- 2018 Ram 1500 3.6L FLEX
- 2018 Ram 1500 5.7L GAS
- 2019 Ram 1500 Classic 3.0L DIESEL
- 2019 Ram 1500 Classic 3.6L FLEX
- 2019 Ram 1500 Classic 5.7L GAS
- 2020 Ram 1500 Classic 3.6L FLEX
- 2020 Ram 1500 Classic 5.7L GAS
- 2021 Ram 1500 Classic 3.6L FLEX
- 2021 Ram 1500 Classic 5.7L GAS
WARRANTY: 3 Year 36K Miles
VIDEO: Watch Video
